ASTM A213 T9 Tube Specification

ASTM A213 T9 Tube Spotlight

Sizes in Stock
  • Seamless Tube: 6.00 – 177.80 mm OD
  • Welded Tube: 12.70 – 114.30 mm OD
Manufacturing Process Hot Formed, Cold Formed, Precision Rolled
American and European Standards ASTM A213, ASME SA213, UNS K90941
Raw Material Origin Janpanese, Korean, European, American, Russia, Indian
Approval ADNOC, KNPC, BAPCO, Q CHEM, EIL, MA’ADEN, Saudi Aramco, SABIC, KOC, Marine and KPI.
Brand in Stock Outokumpu, SMT, OS-LOK, Salzgitter Mannesmann, KOBELCO, Jindal
Shape Round,Rectangular, Square
Length Random, Fixed length, Double Random
Free Sample Yes
Inspection Dimensional, PMI, Visual
Connection Method Welding, Flange joint, Threading
Delivery Time
  • Bahrain: 7-8 Days
  • Denmark : 25-30 Days
MTC EN 10204 3.1

Table Of Content

Cut to Size ASME SA 213 Gr T9 Seamless Tube Supplier in India At Discounted Price

ASTM A213 T9 Tube Specification

Find ASTM A213 T9 Tube Supplier in India Who Provides Detailed Specification of Products

Welded Tube Sizes
ASME SA213 T9 Welded Tube Sizes
  • Thickness: 1.24 – 8.56 mm
  • OD: 12.70 – 114.30 mm
  • Length: Up to 7,315 mm
Seamless Tube Sizes
SA213 T9 Seamless Tube Sizes
  • Thickness: 1.00 – 20.00 mm
  • OD: 6.00 – 177.80 mm
  • Length: 1,000 – 8,000 mm



Capillary Tube Sizes
T9 Steel Capillary Tube Sizes
  • Thickness: 0.10 – 1.65 mm
  • OD: 0.50 – 12.70 mm
  • Length: Up to 15,000 mm
Coil Tube Sizes
SA213T9 Coil Tube Sizes
  • Thickness: 0.50 – 3.05 mm
  • OD: 3.18 – 25.40 mm
  • Length: 15 – 300 mm
Form
ASTM A213 T9 Tube Form
  • Round
  • Hydraulic
  • Straight
  • Coil



End
A213 T9 Seamless Tube End
  • Plain
  • Bevelled
  • Grooved
  • Threaded
Finish
SA 213 Gr T9 Welded Tube Finish
  • Bright
  • Polished
  • Pickling
  • Annealing
Origin
SA213 T9 ERW Tube Origin
  • Korean
  • Janpanese
  • American
  • European
Process
UNS K90941 Round Tube Process
  • Seamless
  • Redrawn
  • ERW
  • Welded



Technique
Alloy Steel SA 213 T9 Square Tube Technique
  • Hot Formed
  • Cold Formed
  • Precision Rolled



Physical Properties
ASTM A213 Gr T9 Rectangular Tube Physical Properties
  • Density: 7.80 g/cm³
  • Melting Point: 1,400 – 1,455 °C
Standards
SA213T9 Boiler Tube Standards
  • ASTM A213 | ASME SA213
  • UNS: K90941
Services
SA 213 T9 Heat Exchanger Tube Services
  • Laser cuttings
  • Cut-to-length services
  • Plasma profiling
  • Tube manipulation



Features
T9 Steel Superheater Tube Features
  • High-Temperature Performance
  • Provides Excellent Resistance To Heat
Testing
A213 T9 Coil Tubing Testing
  • Hydro Test
  • UT
  • RT
  • Eddy Current

Get Hot and Cold Formed UNS K90941 Welded Tubing Ideal For Power Generation Industry

Applications Of ASTM A213 Gr T9 Coil Tubing

  • Nuclear Power Plant Industry
  • Petrochemical Industry
  • Chemical Industry
  • Research & Development
  • Oil and Gas Industry
  • Pulp & Paper Indust
  • Mega Projects & Defense

Alloy Steel SA 213 T9 Square Tube Chemical Composition

Grade Mn C≤ S≤ P≤ Mo Si≤
T9 0.30~0.60 0.15 max 0.025 0.025 0.90~1.10 0.25-1.0

ASTM A213 Gr T9 Rectangular Tube Mechanical Properties

Grade Yield Strength, MPa Tensile Strength, MPa Hardness, HB Elongation, %
T9 205 min 415 min 179 max 30 min

SA213T9 Boiler Tube Material Equivalent

ASTM/ ASME Grade Material/ WNR UNS EN 10216-2 Standard
A213/ SA 213 T9 1.7386 K90941 X11CrMo9-1 + I
X11CrMo9-1 + NT

What Are The Key Considerations For Procuring SA213T9 Tube ?

  • Supplier Reliability
  • Quality Assurance
  • Delivery and Support
  • Traceability

Weekly Delivery of ASTM A213 T9 Tube in below countries

Export to Continent Shipping time
Oman
Oman		 Asia 5 Days
Kenya
Kenya		 Africa 19 Days
UAE
UAE		 Asia 5 Days
USA
USA		 North America 40-60 Days

Monthly Delivery of ASME SA 213 Gr T9 Seamless Tube in below countries

Export to Continent Shipping time
Mexico
Mexico		 North America 45 Days
Singapore
Singapore		 Asia 8 Days
Kenya
Kenya		 Africa 19 Days
South Africa
South Africa		 Africa 25-30 Days

ASTM A213 T9 Tube Types

Check ASTM A213 T9 Tube Manufacturer in India offering a Comprehensive Range of Types

ASME SA213 T9 Seamless Tube

ASME SA213 T9 Seamless Tube

A213 T9 Welded Tube

A213 T9 Welded Tube

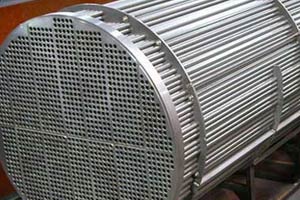

SA 213 Gr T9 Condenser Tubes

SA 213 Gr T9 Condenser Tubes

UNS K90941 Capillary Tube

UNS K90941 Capillary Tube

Alloy Steel SA 213 T9 Rectangular Tube

Alloy Steel SA 213 T9 Rectangular Tube

ASTM A213 Gr T9 Square Tube

ASTM A213 Gr T9 Square Tube

SA 213 T9 Boiler Tube

SA 213 T9 Boiler Tube

T9 Steel Heat Exchanger Tube

T9 Steel Heat Exchanger Tube

A213 T9 Coil Tubing

A213 T9 Coil Tubing

SA213 T9 Tubing Tolerance

Outside Diameter Cut Length Tolerance Ovality Tolerance OD Tolerance WT Tolerance
38, 1 mm < OD ≤ 88, 9 mm + 4, 76 mm, – 0 mm max, 2, 41 mm ± 0, 25 mm ± 10 %
12, 7 mm < OD ≤ 38, 1 mm + 3, 18 mm, – 0 mm max, 1, 65 mm ± 0, 13 mm ± 10 %
OD≤ 12, 7 mm + 3, 18 mm, – 0 mm – ± 0, 13 mm ± 15 %

UNS K90941 Seamless Tube Weight Chart

Outside Diameter Tube Weight in Pounds
WT (inch)
1.250 0.050 0.095 0.250 1.000 0.875 0.300 0.360 0.500 0.400 0.625 0.460 0.200 0.750 1.125 0.150
1 ½ 0.7743 1.426 3.338 3.845 4.383 5.34 4.699 5.109 2.777 2.163
1 ¼ 0.6408 1.172 2.670 3.044 3.422 3.631 2.243 1.762
2 ½ 1.308 2.44 6.008 15.19 7.049 8.228 10.68 8.971 12.52 10.02 4.913 14.02 3.765
2 1.041 1.933 4.673 5.447 6.305 8.01 6.835 9.178 7.566 3.845 10.01 2.964
4 2.109 3.962 10.01 32.04 29.20 11.85 14.00 18.69 15.38 22.53 17.39 8.117 26.03 34.54 6.168
3 1.575 2.947 7.343 21.36 19.86 8.651 10.15 13.35 11.11 15.85 12.48 5.981 18.02 4.566
6 63.41 5.991 15.35 53.40 47.89 18.26 21.68 29.37 23.92 35.88 27.22 12.39 42.05 58.57 9.372
5 50.06 2.643 4.977 12.68 42.72 38.55 15.06 17.84 24.03 19.65 29.20 22.30 10.250 34.04 45.56 7.770
10 116.80 26.03 96.12 85.27 31.08 37.06 50.73 41.01 62.58 46.87 74.09 106.60
8 90.11 20.69 74.76 66.58 24.67 29.37 40.05 32.47 49.23 37.04 16.660 58.07 82.60

Alloy Steel SA 213 T9 Welded Tube Size Chart

View ASTM A213 T9 Tube Supplier in India Who offer custom sizes

Size Thickness (“) ID (“) Lbs per Foot
7/16″ OD
0.028 0.382 0.123
3/16″ OD
0.028 0.132 0.048
1/4″ OD
0.028 0.194 0.067
0.049 0.152 0.105
0.065 0.12 0.128
3/8″ OD
0.028 0.319 0.104
0.049 0.277 0.171
0.058 0.259 0.196
0.083 0.209 0.259
7/16″ OD
0.035 0.368 0.151
0.065 0.308 0.259
0.095 0.248 0.348
5/16″ OD
0.028 0.257 0.085
0.049 0.215 0.138
0.058 0.197 0.158
0.095 0.123 0.221
1/2″ OD
0.028 0.444 0.141
0.049 0.402 0.236
0.058 0.384 0.274
0.083 0.334 0.37
0.095 0.31 0.411
9/16″ OD
0.035 0.493 0.197
0.065 0.433 0.346
3/4″ OD
0.028 0.694 0.216
0.049 0.652 0.367
0.058 0.634 0.429
0.095 0.56 0.665
0.12 0.51 0.807
0.188 0.374 1.128
7/8″ OD
0.035 0.805 0.314
0.058 0.759 0.506
0.065 0.745 0.562
0.095 0.685 0.791
0.12 0.635 0.968
5/8″ OD
0.028 0.569 0.179
0.049 0.527 0.301
0.058 0.509 0.351
0.095 0.435 0.538
0.12 0.385 0.647
1″ OD
0.035 0.93 0.361
0.049 0.902 0.498
0.058 0.884 0.584
0.065 0.87 0.649
0.12 0.76 1.128
0.156 0.688 1.406
1-1/8″ OD
0.035 1.055 0.407
0.058 1.009 0.661
0.065 0.995 0.736
0.12 0.885 1.288
1-3/4″ OD
0.049 1.652 0.89
0.095 1.56 1.679
0.188 1.374 3.136
1-3/8″ OD
0.049 1.277 0.694
0.058 1.259 0.816
0.065 1.245 0.909
0.12 1.135 1.609
1-1/2″ OD
0.035 1.43 0.548
0.058 1.384 0.893
0.065 1.37 0.996
0.095 1.31 1.426
0.12 1.26 1.769
1-1/4″ OD
0.035 1.18 0.454
0.058 1.134 0.738
0.065 1.12 0.823
0.095 1.06 1.172
0.156 0.938 1.823
1-5/8″ OD
0.049 1.527 0.825
0.065 1.495 1.083
0.095 1.435 1.552
0.156 1.313 2.447
