Certified Duplex Stainless Steel Rod Supplier in Mumbai in Various Grades
Specification of Duplex Round Bar
Duplex Round Bar Manufacturer in India , Ideal for Industrial Applications.
- Diameter: 3 – 800mm
- Length: 1 to 6 meter
- Length: Custom
- Length:1 to 6 meter
- Size: 4 – 100mm
- Thickness: 2 to 150 mm
- Width:10 – 500mm
- Length: 1 to 6 meter
- Size: 2 to 100mm
- Length:1 to 6 meter
- H&T
- PH
- ANN
- Wooden Box
- Bubble Wraps
- Bundled
- Heat Treatment
- Shearing
- Cutting
- European
- Janpanese
- American
- K9 – K12
- H8 – H13
- Rolled
- Forged
- Destructive
- Non Destructive
- ASTM A276, A479 | ASME SA276, SA479
- UNS: S32750 | WNR: DIN 1.4462
- Heat Treatment Charts
- Third party inspection
- MTC etc.
- Rectangle
- Round
- Square
- Hex
- Polished
- Black
- Rough
- Bright
- Density:7.80 Kg/m³
- Melting Point:1420 – 1465°C
- Temperature Range:-50°C to 300°C (-58°F to 572°F)
- Corrosion resistance
- Strength
- Weldability
- Benefits
- Material type
- Applications
Stock and Supply Duplex Steel Hex and Flat Bar in Odd Sizes At Factory Price
| Size in mm | Price in USD(per Kg) | CIF Price(per Kg) |
|---|---|---|
| 20 to 50 | US $ 6.24 | US $ 6.74 |
| 50 to 70 | US $ 6.16 | US $ 6.74 |
| 70 to 100 | US $ 6.00 | US $ 6.51 |
| 100 + | US $ 6.24 | US $ 6.74 |
Offer Janpanese Origin DSS Square Bar with Side Width 4 – 100mm or Custom
ASTM A276 Duplex Steel Rounds Size Range
| Size (mm) | Weight per metre (Kg) |
|---|---|
| 12 * 12 | 1.14 |
| 16 * 16 | 2.02 |
| 20 * 20 | 3.16 |
| 25 * 25 | 4.94 |
Most Common Types of Duplex Round Bars
Duplex Round Bar Supplier in India , Providing High-quality Round Bar in Sizes Custom Range.
Duplex Stainless Steel Round Bar
Duplex Steel Rod
Duplex Stainless Flat Bar

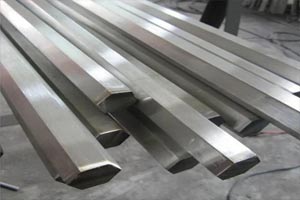

Stainless Steel Duplex Hex Bar
Duplex Square Bar
DSS Rectangular Bar
Duplex SS Bright Bar
ASTM A276 Duplex Steel Rounds
SA 276 Duplex Shaft
Duplex Stainless Steel Billet
Duplex Steel Bloom
Duplex Stainless Bar Stock
Stainless Steel Duplex Polished Bar
Duplex Cold Drawn Bar
DSS Hot Rolled Bars
Duplex SS Annealed Bar
ASTM A276 Duplex Steel Forged Bar
SA 276 Duplex Ground and Rolled Polished Bar
Duplex Stainless Steel Peeled Round Bars
Duplex Bar Stock Available Online With Different Finish, Forms and Supply State
- Bright Polished
- Rough Turned
- Black
- Matt Finish
- BA Finish
Purchase Duplex Steel Bar With Various Free Services Like Shearing, Cutting, Heat Treatment etc.
Duplex Stainless Flat Bar Heat Treatment
| Property | Value |
|---|---|
| Process | Solution Annealing |
| Temperature Range |
|
| Duration | 30 minutes to 1 hour |
| Heat Treatment | above 600°C (1112°F) |
Weight Chart of Duplex Stainless Steel Billet
| Round Bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Mtr | Kgs / Foot | Size | Kgs / Mtr | Kgs / Foot | Size | Kgs / Mtr | Kgs / Foot |
| 3mm | 0.055 | 0.017 | 3″ | 35.762 | 10.900 | 20mm | 2.470 | 0.753 |
| 1/8″ | 0.062 | 0.019 | 3-1/4″ | 41.996 | 12.800 | 22mm | 2.979 | 0.908 |
| 4mm | 0.098 | 0.030 | 3-3/4″ | 55.780 | 17.001 | 24mm | 3.543 | 1.080 |
| 5/32″ | 0.095 | 0.029 | 3-1/2″ | 48.772 | 14.850 | 7/8″ | 3.038 | 0.926 |
| 9mm | 0.497 | 0.152 | 7″ | 196.000 | 59.432 | 1-3/8″ | 7.550 | 2.303 |
| 3/8″ | 0.557 | 0.170 | 7-1/2″ | 225.000 | 68.226 | 35mm | 7.553 | 2.390 |
| 5mm | 0.154 | 0.047 | 4-1/4″ | 72.249 | 21.908 | 1″ | 3.970 | 1.210 |
| 3/16″ | 0.141 | 0.043 | 4″ | 63.340 | 19.306 | 25mm | 3.871 | 1.180 |
| 6mm | 0.223 | 0.068 | 4-3/4″ | 90.249 | 27.366 | 27mm | 4.490 | 1.368 |
| 7/32″ | 0.190 | 0.058 | 4-1/2″ | 80.340 | 24.4487 | 26mm | 4.170 | 1.271 |
Duplex Cold Drawn Bar Tolerances
| Tolerance “H” Series in MM | ||||||||
|---|---|---|---|---|---|---|---|---|
| NOMINAL SIZE / DIAMETER mm | h7 | h5 | h8 | h6 | h9 | H11 | H10 | h12 |
| ~ to 3 | +0.01/0 | +0.004/0 | +0.014/0 | +0.006/0 | +0.025/0 | +0.06/0 | +0.04/0 | +0.1/0 |
| over 3 to 6 | +0.012/0 | +0.005/0 | +0.018/0 | +0.008/0 | +0.03/0 | +0.075/0 | +0.048/0 | +0.12/0 |
| over 30 to 50 | +0.025/0 | +0.011/0 | +0.039/0 | +0.016/0 | +0.062/0 | +0.16/0 | +0.1/0 | +0.25/0 |
| over 10 to 18 | +0.018/0 | +0.008/0 | +0.027/0 | +0.011/0 | +0.043/0 | +0.11/0 | +0.07/0 | +0.18/0 |
| over 18 to 30 | +0.021/0 | +0.009/0 | +0.033/0 | +0.013/0 | +0.052/0 | +0.13/0 | +0.084/0 | +0.21/0 |
| over 6 to 10 | +0.015/0 | +0.006/0 | +0.022/0 | +0.009/0 | +0.036/0 | +0.09/0 | +0.058/0 | +0.15/0 |
| over 80 to 120 | +0.035/0 | +0.015/0 | +0.054/0 | +0.022/0 | +0.087/0 | +0.22/0 | +0.14/0 | +0.35/0 |
Stainless Steel Duplex Hex Bar Chemical Composition
Dss Hot Rolled Bars Mechanical Properties
| Property | Values |
|---|---|
| Elongation | 30% |
| Tensile Strength | Psi-90000 , MPa-620 |
| Yield Strength | Psi-65000 , MPa-450 |
Physical Properties of Duplex Stainless Steel Bar
| Property | Values | |
|---|---|---|
| Density | 0.2861 lbm/in3 | 68 °F |
| Specific Heat | 0.12 | 32-212°F |
| Modules of Elasticity | 28 x 106 | tension (E) |
| Thermal Conductivity | 9.3 | 200°F |
| Property | Value |
|---|---|
| HSN Code | 7222 |
Duplex Round Bar Weight Calculator
| Property | Formula |
|---|---|
| Weight Calculation | Weight(w) = Volume(v) * Density(p) |
Duplex Round Bar Shipping Time As Per Country
| Variation in Price Extra 5 % |
|
|---|---|
| Export to | Shipping Time in Days |
| Norway | 45 |
| Algeria | 45 |
| Sudan | 30 |
| Belgium | 45 |
| Gabon | 40-60 |
| Slovakia | 45-60 |
| Mexico | 45 |
| Panama | 45 |
| Malaysia | 7 |
| France | 28 |
| Slovenia | 60 |
| Uk | 30 |
| Czech Republic | 45 |
| Indonesia | 7 |
6 Reasons to choose Ganpat Industrial Corporation
- Distributor of Heat Exchanger parts and Alloys for High Temperature applications.
- Stockholder and importer of Ferrous and non ferrous metals.
- Wide stock of prime quality austenitic and Ferritic Stainless Steel for Extreme pressure environment.
- Marine grade steel at lowest price in Mumbai.
- Compare Price per KG in India and China.
- Offer Resale price to local suppliers, traders and wholesalers in UAE, Saudi Arabia, Egypt, and USA
