Incoloy 925 Fasteners Specification

Incoloy 925 Fasteners Spotlight

Sizes in Stock
  • Imperial Sizes: 3/6″ – 2″
  • Metric Sizes : M0.2 to M33
Length 3 to 200 mm or Custom
Raw Material Origin Janpanese, American, European, Russia, Korean, Indian
Free Sample Yes
Threads BSF, BSW, UNC, UNF, METRIC
Head Style Hex, Oval, Flat, Truss, Pan etc.
Manufacturing Method Hot Forged, CNC Machining, Cold Forged
Approval ADNOC, EIL, Q CHEM, MA’ADEN, KNPC, SABIC, BAPCO, Saudi Aramco, KOC, Marine and KPI.
Trade Name Incoloy® Alloy 925
UNS N09925 Threaded Rod Condition Cold Drawn and Threading
Delivery Time
  • Greece : 25-30 Days
  • Kuwait : 7-8 Days
Nickel 925 Stud Type Tap-End, Double-End, Fully or Fine threaded
MTC EN 10204 3.1

Table Of Content

Alloy 925 Bolts Manufacturer in India With Standard and Custom To Your Specification

Incoloy 925 Fasteners Specification

Check Incoloy 925 Fasteners Supplier in India who provides Custom Specification

Origin
Nickel 925 Hex Nut Origin
  • American
  • Korean
  • European
  • Janpanese
Process
Alloy 925 Threaded Rod Process
  • Cold forging
  • CNC Machined
  • Hot forging



Finish
Inconel Alloy 925 Hex Bolts Finish
  • Phosphating
  • HDG
  • Oxidation
Threaded Rod Threads
Nickel 925 Threaded Rod Threads
  • Left Hand
  • Right Hand
  • Both Right
Marking
UNS N09925 Screws Marking
  • Heat number
  • Material grade
  • Specification
  • Custom logo
Form
Incoloy 925 Form
  • Studs, Rivet
  • Bolts, Dowel Pin
  • Nut,Washer
  • Threaded Rod, Screw



Physical Properties
Nickel 925 Bolts Physical Properties
  • Density: 8.08 g/cm3
  • Melting Point: 1311°C-1366 °C
  • Temperature : upto 650 °C
Standards
Incoloy 925 Fasteners Standards
  • ASTM B637 | ASME SB637
  • UNS: N09925
Features
Nickel 925 Studs Features
  • High Strength
  • High-Temperature Performanc
  • Age-Hardenable Alloy
  • Corrosion Resistance
Studs End and Types
Alloy 925 Studs End and Types
  • End: Sheared, Cut, Chamfer, Flat etc.
  • Types: Fully threaded, Double-end, Tap-end



Standard Sizes
Inconel Alloy 925 Bolts Standard Sizes

  • Imperial Sizes: 3/6″ – 2″
  • Length: 3-200 mm
  • Metric Sizes : M0.2 to M33
Head and Neck Types
Nickel Alloy 925 Nuts Head and Neck Types
  • Neck Type: Square, Hex, Knurled etc.
  • Head Type: Oval, Hex, Truss Flat etc

Supply Extensive Range Of UNS N09925 Studs and Threaded Rod For Aerospace Applications

Inconel Alloy 925 Screws Chemical Composition

Grade Si C Mn Cr S Ni Fe
Incoloy 925 0.5 max 0.30 max 1.0 max 19.5 – 22.5 0.03 max 42.0 – 46.0 22 min

Nickel 925 Hex Bolts Mechanical Properties

Find Incoloy 925 Fasteners Supplier in India who offers Superior Strength

Elongation, 5.65√S0 and 4D – 18%
0.2% Proof Stress 110-140 ksi 758-965 N/mm2
Impact Strength(-60oC) Longitudinal 35 ft.lb av (32 ft.lb min) 47J av (43J min)
Reduction of Area – 25%
Tensile Strength 140 ksi 965 N/mm2
Hardness – 38 HRC max.

ASTM B637 UNS N09925 Nut Bolt Physical Properties

Young’s Modulus (N/mm2) 199
Specific Heat, 20°C (J/(g.K)) 435
Electrical Resistivity, 20°C (Ω-m) 1.17×10-6
Magnetic Permeability (20°C) 1.001
Electrical Conductivity, 20°C (mΩ/mm2) 0.25 (1.48% IACS)
Thermal conductivity, 20°C (W/(m.K)) 12
Density (Kg.m-1) 8080

Alloy Incoloy 925 Threaded Rod Equivalent Grades

TANDARD WNR. UNS
Alloy 925 – N09925

Applications Of UNS N09925 Studs

  • Shipbuilding Industries
  • Power Plant Industries
  • Oil & Gas Industrires
  • Chemical Industries
  • Cement Industrires
  • Sugar Industrires
  • Petrochemical Industrires
  • Fertilizer Industrires

Incoloy 925 Fasteners are Delivered Weekly to the Countries Listed Below

Export to Continent Shipping time
Vietnam
Vietnam		 Asia 10 Days
Malaysia
Malaysia		 Asia 10 Days
Qatar
Qatar		 Asia 7 Days
Brazil
Brazil		 South America 45-60 Days

Monthly Delivery of Incoloy 925 Fasteners in below countries

Export to Continent Shipping time
Thailand
Thailand		 Asia 7 Days
Saudi Arabia
Saudi Arabia		 Asia 7 Days
Philippines
Philippines		 Asia 14 Days
Indonesia
Indonesia		 Asia 9 Days

925 Inconel hex Bolts Dimension

925 Inconel hex Bolts Dimension

Diameter of Heavy Hex Bolt F H C D
Width Across Flats Height Width Across Corners Diameter of Heavy Hex Bolts Body
Basic Max Min Max Basic Min Max Max
5/8 1-1/16 1.062 1.031 0.444 27/64 0.378 1.227 0.642
7/8 1-7/16 1.438 1.394 0.604 37/64 0.531 1.660 0.895
2-1/4 3-1/2 3.500 3.388 1.548 1-1/2 1.327 4.041 2.305
3/4 1-1/4 1.250 1.212 0.524 1/2 0.455 1.443 0.768
2 3-1/8 3.125 3.025 1.388 1-11/32 1.175 3.608 2.039
2-1/2 3-7/8 3.875 3.750 1.708 1-21/32 1.479 4.474 2.559
1-3/8 2-3/16 2.188 2.119 0.940 29/32 0.810 2.526 1.404
1-1/4 2 2.00 1.938 0.876 27/32 0.749 2.309 1.277
1-1/8 1-13/16 1.812 1.756 0.780 3/4 0.658 2.093 1.149
1-3/4 2-3/4 2.750 2.662 1.196 1-5/32 1.054 3.175 1.785
1/2 7/8 0.875 0.850 0.364 11/32 0.302 1.010 0.515
1-1/2 2-3/8 2.375 2.300 1.036 1 0.902 2.742 1.531
1 1-5/8 1.625 1.575 0.700 43/64 0.591 1.876 1.022

ASTM B637 UNS N09925 Screw Size Chart

View Incoloy 925 Fasteners Manufacturer in India who Provides Various Sizes

Millimeter Inch Nearest Fraction Size
1.8 0.07 5/64 #1
3.1 0.12 1/8 #5
2.8 0.11 7/64 #4
6.3 0.24 1/4 #14
5.5 0.21 7/32 #12
3.3 0.13 9/64 #6
1.5 0.06 1/16 #0
4.2 0.16 5/32 #8
2.0 0.08 3/32 #2
2.3 0.09 7/64 #3
4.8 0.19 3/16 #10

Nickel Alloy 925 Studs Size Chart

PIPE SIZE STUD SIZE FLANGE SIZE STUDS PER SET
1-1/4″ 7/8″-9 X 5″ 900# 4
1″ 7/8″-9 X 5″ 900# 4
12″ 1-3/8″-8 X 10″ 900# 20
10″ 1-3/8″-8 X 9-1/4″ 900# 16
2″ 7/8″-9 X 5-3/4″ 900# 8
1-1/2″ 1″-8 X 5-1/2″ 900# 4
20″ 2″-8 X 13-3/4″ 900# 20
18″ 1-7/8″-8 X 12-3/4″ 900# 20
2-1/2″ 1″-8 X 6-1/4″ 900# 8
24″ 2-1/2″-8 X 17-1/4″ 900# 20
3/4″ 3/4″-10 X 4-1/2″ 900# 4
1/2″ 3/4″-10 X 4-1/4″ 900# 4
3-1/2″ 900#
3″ 7/8″-9 X 5-3/4″ 900# 8
8″ 1-3/8″-8 X 8-3/4″ 900# 12
6″ 1-1/8″-8 X 7-1/2″ 900# 12
4″ 1-1/8″-8 X 6-3/4″ 900# 8
14″ 1-1/2″-8 X 10-3/4″ 900# 20
16″ 1-5/8″-11 X 11-1/4″ 900# 20
5″ 1-1/4″-8 X 7-1/2″ 900# 8

Alloy 925 Nuts Thread Pitch Chart

Size & TPI Tensile Area (in²) Pitch Dia (in) Minor Area (in²)
7/16-14 0.1063 0.3911 0.0933
3/8-16 0.0775 0.3344 0.0678
9/16-12 0.182 0.5084 0.162
1/2-13 0.1419 0.4500 0.1257
3/4-10 0.334 0.6850 0.302
5/8-11 0.226 0.5660 0.202
1-8 0.606 0.9188 0.551
7/8-9 0.462 0.8028 0.419
1-1/4-7 0.969 1.1572 0.890
1-1/8-7 0.763 1.0322 0.693
1-1/2-6 1.405 1.3917 1.294
1-3/8-6 1.155 1.2667 1.054
2-4-1/2 2.500 1.8557 2.300
1-3/4-5 1.900 1.6201 1.740
2-1/2-4 4.000 2.3376 3.720
2-1/4-4-1/2 3.250 2.1057 3.020
3-4 5.970 2.8376 5.620
2-3/4-4 4.930 2.5876 4.620
3-1/2-4 8.330 3.3376 7.920
3-1/4-4 7.100 3.0876 6.720
4-4 11.080 3.8376 10.610
3-3/4-4 9.660 3.5876 9.210

Types of Incoloy 925 Fasteners

Incoloy 925 Bolts

Incoloy 925 Bolts

Alloy 925 Hex Bolts

Alloy 925 Hex Bolts

Nickel Alloy 925 Heavy Hex Bolts

Nickel Alloy 925 Heavy Hex Bolts

925 Inconel Socket Head Bolts

925 Inconel Socket Head Bolts

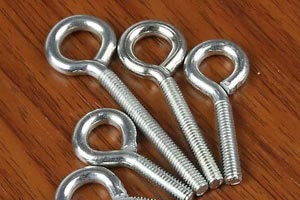

UNS N09925 Eye Bolt

UNS N09925 Eye Bolt

Nickel 925 Nuts

Nickel 925 Nuts

Incoloy Alloy 925 Square Bolts

Incoloy Alloy 925 Square Bolts

UNS N09925 Stud Bolt

UNS N09925 Stud Bolt

Alloy 925 U Bolts

Alloy 925 U Bolts

Incoloy 925 Threaded Rod

Incoloy 925 Threaded Rod

Inconel Alloy 925 Weight chart

100 NOS Approx Weight in (Kgs)
Length in (mm) Diameter
M 20 M 22 M 16 M 18 M 12 M 14 M 8 M 10 M 5 M 6
360 104.167 63.291 35.211
380 108.696 66.667 37.037
320 92.593 56.818 31.646
340 98.039 60.241 33.557
280 81.967 98.039 50.505 28.090 19.157
300 87.719 104.167 53.763 29.940 20.325
240 71.429 84.746 43.860 24.510 16.722
260 76.923 90.909 47.170 26.316 17.921
400 113.636 69.444 39.063
200 60.976 73.529 37.594 49.020 20.833 29.586 14.327
220 65.789 79.365 40.650 22.624 15.528
160 50.505 61.728 31.056 40.984 17.241 24.272 11.905
180 55.556 67.568 34.247 19.011 26.882 13.123
120 40.984 50.000 24.631 32.895 13.624 18.797 9.506
140 46.296 55.556 27.933 35.461 15.432 20.833 10.707
80 30.303 40.000 18.248 24.510 10.000 13.889 4.072 7.013 2.111
100 35.714 46.296 21.459 27.778 11.820 16.340 4.873 8.251
70 27.778 35.461 16.835 22.124 9.058 12.987 3.671 6.394 1.890
75 29.070 39.063 17.606 23.256 9.506 13.228 3.873 6.702 2.000
50 22.727 28.409 13.624 17.857 7.299 11.261 2.870 5.155 1.030 1.450
60 25.126 32.051 15.244 20.000 8.183 12.255 3.270 5.774 1.670
40 20.747 12.107 16.667 6.410 10.288 2.470 4.533 0.881 1.230
45 21.739 12.821 17.241 6.859 10.504 2.671 4.840 0.958 1.340
25 5.252 8.170 1.871 3.660 0.660 0.897
35 19.608 11.416 16.026 5.974 10.000 2.271 4.223 0.804 1.120
30 18.657 10.707 5.574 9.690 2.070 3.912 0.737 1.010
16 1.590 3.211 0.448 0.743
20 4.892 1.711 3.411 0.598 0.812
