ASTM A403 WP316L Elbow and Tee Manufacturer in India As Per ANSI B16.9
Specification Of Stainless Steel 316 Pipe Fittings
Stainless Steel 316 Pipe Fittings Manufacturer in India, Corrosion-resistant Used Extensively in Industrial applications.
Stainless Steel 316 Pipe Fittings Sizes
- Welded Fittings:1/2 to 48″
- Seamless Fittings:1/2″ – 10″
- Schedule :SCH 10- SCH 160
316 Pipe Fittings Dimensions Standards
- ASME B16.28
- MSS-SP-43
- ANSI B16.9
WNR 1.4401 Pipe Fittings Form
- Cap
- Reducer
- Tee
- Elbow
SUS 316 Nipple Process
- Seamless
- Fabricated
- Welded
SS 316l Fittings Origin
- Korean
- American
- European
- Janpanese
ASTM A403 Wp316 Finish
- Polished
- Pickled
A403 Wp316 Elbow Bending Radius
- 1D
- 3D
- 2D
- 5D
SS 316 Concentric Reducer Physical Properties
- Density: 8.0 g/cm³
- Melting Point: 1400°C (2550°F)
- Temperature : up to 870°C (1600°F)
SS 316 Stub End Standards
- ASTM A403 | WP316
- UNS: S31600
- WNR: 1.4401
SA403 Wp316 Testing
- HIC tested
- Ultrasonic test
- NDT Test
- PMI Test
316l Pipe Fittings Features
- High strength
- Ductility
- Durability
- Good Tensile Strength
A403 Wp316l Fittings Application
- Petrochemicals
- Pharmaceuticals
- Chemical Equipment
- Power Generation
SS 316 Buttweld Fittings Supplier in Mumbai in Sch 10 to Sch 160 With Polished Finish
- Mill Finished
- Polished
- Antirust Oil Coating
Trusted Source Of Custom Size WNR 1.4401 End Cap Which is Required for Water Treatment Plants
| Type | NP Size (NPS) | OD | WT |
|---|---|---|---|
| Elbow (90°) | 1/2 | 0.840 | 0.109 |
| 3/4 | 1.050 | 0.113 | |
| 1 | 1.315 | 0.140 | |
| 2 | 2.375 | 0.154 | |
| Tee | 1/2 | 0.840 | 0.109 |
| 3/4 | 1.050 | 0.113 | |
| 1 | 1.315 | 0.140 | |
| 2 | 2.375 | 0.154 | |
| Reducer | 1 x 1/2 | 1.315 / 0.840 | 0.140 / 0.109 |
| 2 x 1 | 2.375 / 1.315 | 0.154 / 0.140 | |
| Cap | 1/2 | 0.840 | 0.109 |
| 3/4 | 1.050 | 0.113 | |
| 1 | 1.315 | 0.140 | |
| Flange | 1 | 1.315 | 0.140 |
| 2 | 2.375 | 0.154 | |
| 4 | 4.500 | 0.237 | |
| Union | 1/2 | 0.840 | 0.109 |
| 3/4 | 1.050 | 0.113 | |
| 1 | 1.315 | 0.140 |
Buy NDT Tested UNS S31600 Stub End and Reducer Stock Online and Save Your Cost, Refer Price list
UNS S31600 Stub End Price list
| Size’s | Weight | Price per piece in USD |
|---|---|---|
| DN15 | 0.19 | US $3.14 |
| DN25 | 0.28 | US $7.12 |
| DN40 | 0.66 | US $13.00 |
| DN65 | 1.93 | US $32.23 |
| DN100 | 5.83 | US $55.08 |
| DN150 | 12.06 | US $163.01 |
| DN250 | 35.00 | US $584.64 |
| DN20 | 0.15 | US $4.28 |
| DN32 | 0.49 | US $9.14 |
| DN50 | 1.05 | US $16.23 |
| DN80 | 2.93 | US $38.92 |
| DN125 | 8.87 | US $112.92 |
| DN200 | 20.10 | US $288.86 |
SS 316L Pipe Fittings Price list
| Size | Weight | Price per piece in USD |
|---|---|---|
| DN15 | 0.08 | US $2.38 |
| DN25 | 0.16 | US $4.42 |
| DN40 | 0.39 | US $8.43 |
| DN65 | 1.44 | US $19.27 |
| DN100 | 4.03 | US $46.93 |
| DN150 | 10.44 | US $135.34 |
| DN250 | 37.17 | US $636.88 |
| DN20 | 0.11 | US $2.38 |
| DN32 | 0.27 | US $5.95 |
| DN50 | 0.68 | US $12.93 |
| DN80 | 2.14 | US $29.93 |
| DN125 | 6.80 | US $85.34 |
| DN200 | 21.11 | US $285.93 |
Most Common Types Of Stainless Steel 316 Pipe Fittings
Stainless Steel 316 Pipe Fittings Supplier in India , Ideal for Use in Petrochemicals, Power Generation Industries.
Stainless Steel 316 Elbow
SS 316 Tee
WNR 1.4401 Reducer
ASTM A403 Wp316 Cap

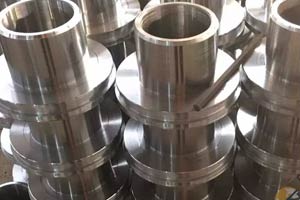

UNS S31600 Stub End
SUS 316 Nipple
AISI 316 Cross
INOX 316 Coupling
Stainless Steel 316l Collar
Offer 316l Stainless Steel Seamless and Welded Fittings With Value Added Services amd Complete Documentation
A403 Wp316L Fittings Documentation
- Flaring Test
- Pitting Resistance Test
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Spectro Analysis
- Micro and Macro Test
- Chemical Analysis
Stainless Steel 316 Elbow Chemical Composition
316L Pipe Fittings Chemical Composition
ASTM A403 Wp316L Mechanical Properties
| Hardness | Low Temperature Range | High Temperature Range | Corrosion Resistance | Proof Stress (Min) | Elongation |
|---|---|---|---|---|---|
| 217 HB | -196°C | Up to 870°C | 60°C | 200 MPa | 40% |
SUS 316 Nipple Physical Property
| Property | Value |
|---|---|
| Density | 7.98 g/cm³ |
| Melting Point | 1375-1400°C (2507-2552°F) |
| Thermal Conductivity | 16.3 W/m·K (at 100°C) |
| Tensile Strength | 515-690 MPa (75,000 – 100,000 psi) |
| Yield Strength | 205 MPa (30,000 psi) |
| Size’s | SCH 80 Elbow | SCH 40 Elbow |
|---|---|---|
| 1/2 | 0.14 | 0.10 |
| 1 | 0.30 | 0.23 |
| 1-1/2 | 0.73 | 0.54 |
| 2-1/2 | 1.73 | 1.32 |
| 4 | 4.07 | 3.17 |
| 6 | 10.13 | 7.99 |
| 12 | 36.41 | 28.75 |
| 3/4 | 0.18 | 0.14 |
| 1-1/4 | 0.53 | 0.39 |
| 2 | 1.13 | 0.85 |
| 3 | 2.31 | 1.77 |
| 5 | 7.12 | 5.52 |
| 8 | 16.64 | 12.84 |
| 10 | 26.90 | 21.35 |
Stainless Steel 316 Pipe Fittings Equivalent Material
| UNS | Werkstoff Nr. | BS | JIS | AFNOR | EN |
|---|---|---|---|---|---|
| S31600 | 1.4436 / 1.4401 | 316S33 / 316S31 | SUS 316 | Z7CND17-110-02 | X3CrNiMo17-13-3 / X5CrNiMo17-12-2 |
| Property | Value |
|---|---|
| HS Code | 73072900 |
Advantages for Buyers in Tanzania to buy Stainless Steel 316 Pipe Fittings from India
- Competitive Pricing
- High-Quality Products
- Timely Delivery
- Wide Range of Products
- Established Export Relationships
- Customization and Availability
Stainless Steel 316 Pipe Fittings Shipping Time As Per Location
| Variation in Price Extra 5 % |
|
|---|---|
| Export to | Shipping Time in Days |
| Switzerland | 45-60 |
| Albania | 45 |
| Portugal | 45 |
| Belgium | 45 |
| Hungary | 45 |
| Slovakia | 45-60 |
| Austria | 60 |
| Czech Republic | 45 |
| Indonesia | 7 |
| Singapore | 8 |
| Malaysia | 7 |
| Netherlands | 60 |
| Slovenia | 60 |
| Finland | 45-60 |
| Croatia | 60 |
| Germany | 60 |
