Nut Bolt Supplier in Mumbai With MTC EN 10204 3.1/3.2
Fasteners Material Specification
Stockist of Industrial Fasteners as per Standards, Refer available Types
Genuine Fasteners Manufacturers in India Who Supply in Various Material and Types With MTC
- Stainless Steel 304 Bolt
- Stainless Steel 304L Fasteners
- Stainless Steel 304H Fasteners
- Stainless Steel 310 Fasteners
- Stainless Steel 310H Fasteners
- Stainless Steel 316 Fasteners
- Stainless Steel 316Ti Fasteners
- Stainless Steel 317 Fasteners
- Stainless Steel 317L Fasteners
- Stainless Steel 321 Fasteners
- Stainless Steel 347 Fasteners
- Stainless Steel 347H Fasteners
- Stainless Steel 410 Fasteners
- Stainless Steel 446 Fasteners
- Stainless Steel 904L Fasteners
Carbon Steel Fastener
Other Fastener
UNS Standard Fastener
Hex Bolts
Stud Bolts
Socket Head Bolts
Eye Bolts
Square Bolts
Flange Bolts
Serrated Flange Bolts
Carriage Bolts
Machine Bolts
U bolts
Threaded rod
Anchor Bolts
J-Bolts
Arbor Bolts
Blind Bolts
Elevator Bolts
Hanger Bolts
Lag Bolts
Sex Bolts or Chicago Bolts
Shoulder Bolts
Structural Bolts
Pentagon Tamper Proof Bolts
Plow Bolts
Rock Bolts
Tork Bolts
Track Bolts
Wing Nut
T-Head Bolts
Tap Bolts
Toggle Bolts
Lock nuts
Slotted nuts
Castle nuts

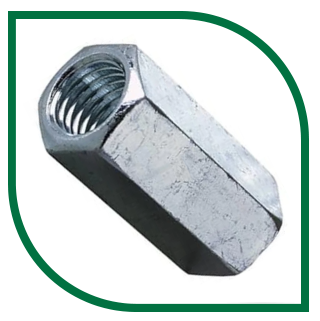

Coupling nuts
Flange nuts

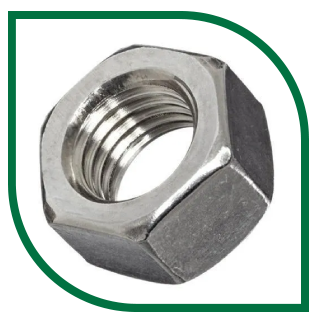

Hexagonal/ hex nuts
Capstan Nut
Knurled Nut
Square nuts
Wheel nuts
Cap Nut
| Standard | Explanation |
|---|---|
| SAE | Society of Automotive Engineers |
| ISO | International Organization for Standardization |
| IS | Indian Standard |
| BS | British Standard |
| EN | European Norms |
| ASME | American Society of Mechanical Engineers |
| DIN | Deutsches Institut für Normung |
| ASTM | American Society for Testing and Materials |
Fasteners Material Grade Chart
| Bolt Grade / Specification | Nominal Size (Inch) |
|---|---|
| Grade 1 – SAE J429 Bolts, Screws and Studs |
1/4 inch to 1-1/2 inch |
| Grade 5 – SAE J429 Bolts, Screws and Studs |
1/4 inch to 1 inch >1 inch to 1-1/2 inch |
| Grade 2 – SAE J429 Bolts, Screws and Studs |
1/4 inch to 3/4 inch >3/4 inch to 1-1/2 inch |
| Grade 5.2 – SAE J429 Bolts, Screws and Studs |
1/4 inch to 1 inch |
| Grade 5.1 – SAE J429 Sems |
No. 4 – 5/8 inch |
| Grade 8.2 – SAE J429 Bolts and Screws |
1/4 inch to 1 inch |
| L9 – Grade 9 Bolts, Nuts and Washers |
1/4 inch to 1-1/2 inch |
| Grade 8 – SAE J429 Bolts and Screws |
1/4 inch to 1-1/2 inch |
| ASTM A307 Grade B Bolts, Screws and Studs |
1/4 inch to 4 inch |
| ASTM A307 Grade A Bolts, Screws and Studs |
1/4 inch to 4 inch |
| ASTM A325 Type 2 High strength structural bolts |
1/2 inch to 1 inch 1-1/8 inch to 1-1/2 inch |
| ASTM A325 Type 3 High strength structural bolts |
1/2 inch to 1 inch 1-1/8 inch to 1-1/2 inch |
| ASTM A354 Grade BB Bolts and studs |
1/4 inch to 2-1/2 inch > 2-1/2 inch to 4 inch |
| ASTM A325 Type 1 High strength structural bolts |
1/2 inch to 1 inch 1-1/8 inch to 1-1/2 inch |
| ASTM A354 Grade BD Bolts, screws and studs |
1/4 inch to 2-1/2 inch > 2-1/2 inch to 4 inch |
| ASTM A449 Type 1 Bolts, screws and studs |
1/4 inch to 1 inch >1 – 1-1/2 inch |
| ASTM A354 Grade BC Bolts and studs |
1/4 inch to 2-1/2 inch > 2-1/2 inch to 4 inch |
| ASTM A490 Type 1 High strength structural bolts |
1/2 inch to 1-1/2 inch |
| ASTM A449 Type 2 Bolts, Screws and studs |
1/4 inch to 1 inch |
| ASTM A490 Type 3 High strength structural bolts |
1/2 inch to 1-1/2 inch |
| ASTM A490 Type 2 High strength structural bolts |
1/2 inch to 1 inch |
Mechanical Hex Bolt In UNC, UNF, ACME and UN Thread Profile
- Flat Head
- Hex Head
- Pan Head
- Hex Washer Head
- Oval Head
- Truss Head
- Round Head
- Slotted Hex Washer Head
- Socket Cap Head
- Button Head
Buy Heavy Hex Head Bolt Size Range From M10 to M100 At Lowest Price
Bolt And Nut Size Chart DIN 558
| Size | Nominal (Major) | Fine Thread (UNF) | Coarse Thread (UNC) | ||||
|---|---|---|---|---|---|---|---|
| Diameter [in] | Threads Per Inch | Tensile Stress Area [in2] |
Minor Area [in2] | Threads Per Inch | Tensile Stress Area [in2] |
Minor Area [in2] | |
| #10 | 0.19 | 32 | 0.02 | 0.0175 | 24 | 0.0175 | 0.0145 |
| #0 | 0.06 | 80 | 0.0018 | 0.0015 | — | — | — |
| 7/16″ | 0.4375 | 20 | 0.1187 | 0.109 | 14 | 0.1063 | 0.0933 |
| #5 | 0.125 | 44 | 0.0083 | 0.0072 | 40 | 0.008 | 0.0067 |
| 9/16″ | 0.5625 | 18 | 0.203 | 0.189 | 12 | 0.182 | 0.162 |
| #8 | 0.164 | 36 | 0.0147 | 0.0129 | 32 | 0.014 | 0.012 |
| 1/2″ | 0.5 | 20 | 0.1599 | 0.1486 | 13 | 0.1419 | 0.1257 |
| #2 | 0.086 | 64 | 0.0039 | 0.0034 | 56 | 0.0037 | 0.0031 |
| 5/8″ | 0.625 | 18 | 0.256 | 0.24 | 11 | 0.226 | 0.202 |
| 1″ | 1 | 12 | 0.663 | 0.625 | 8 | 0.606 | 0.551 |
| #6 | 0.138 | 40 | 0.0102 | 0.0087 | 32 | 0.0091 | 0.0075 |
| 7/8″ | 0.875 | 14 | 0.509 | 0.48 | 9 | 0.462 | 0.419 |
| #4 | 0.112 | 48 | 0.0066 | 0.0057 | 40 | 0.006 | 0.005 |
| 3/8″ | 0.375 | 24 | 0.0878 | 0.0809 | 16 | 0.0775 | 0.0678 |
| 1-1/8″ | 1.125 | 12 | 0.856 | 0.812 | 7 | 0.763 | 0.693 |
| 1/4″ | 0.25 | 28 | 0.0364 | 0.0326 | 20 | 0.0318 | 0.0269 |
| 1-1/4″ | 1.25 | 12 | 1.073 | 1.024 | 7 | 0.969 | 0.89 |
| 5/16″ | 0.3125 | 24 | 0.058 | 0.0524 | 18 | 0.0524 | 0.0454 |
| 1-1/2″ | 1.5 | 12 | 1.581 | 1.521 | 6 | 1.405 | 1.294 |
| 1-3/4″ | 1.75 | — | — | — | 5 | 1.9 | 1.74 |
| 1-3/8″ | 1.375 | 12 | 1.315 | 1.26 | 6 | 1.155 | 1.054 |
| 3/4″ | 0.75 | 16 | 0.373 | 0.351 | 10 | 0.334 | 0.302 |
| 2″ | 2 | — | — | — | 4.5 | 2.5 | 2.3 |
| Size | USD | AED | INR |
|---|---|---|---|
| M 10 X 1.5P X30MM | $5.94 | 21.81 | 431.73 |
| 10MM | $0.12 | AED 0.44 | ₹8.86 |
| M20 X 90 MM | $7.31 | 26.85 | 531.79 |
| M10X40 | $2.24 | AED 8.23 | ₹165.92 |
| 5/16X 92MM | $18.04 | AED 66.21 | ₹1,353.00 |
| M6X20 | $0.35 | AED 1.29 | ₹26.25 |
| M8-M20 | $2.60 | 9.52 | 189.88 |
| M6-M8 | $0.05 | 0.18 | 3.75 |
| M6-M12 | $0.03 | 0.11 | 2.25 |
| M4 | $0.05 | 0.18 | 3.65 |
| M16-M27 | $0.04 | 0.15 | 3 |
Petrochemical Stud Bolt and Threaded Rod With Plain and Galvanized Finish
- Electro galvanized
- Plain Finish
- Phosphate coating
- Galvanized Finis
- Hot dipped
Industrial Steel Fasteners Applications
- Construction and Infrastructure
- Marine and Shipbuilding
- Industrial Equipment and Machinery
- Automotive Manufacturing
- Aerospace Industry
- Oil and Gas
- Heavy Machinery
- Agricultural Equipment
