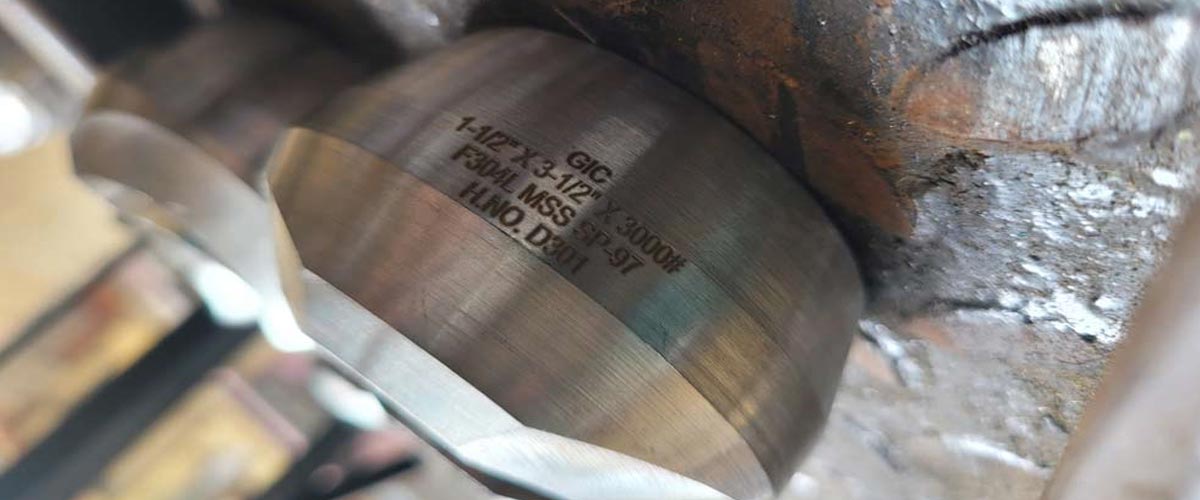

Branch Fittings Supplier in Mumbai As Per MSS SP-97 Standard
Branch Connection
Olets
Weldolet
Sockolet

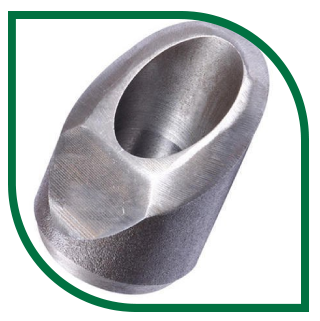

Elbolet
Threadolet
Nipolet
Latrolet
Sweepolet
Flangolet
Insert Weldolet
Brazolet
Get Top Quality Threadolet and Sockolet at the Reasonable Price
| Outlet Size Inches | ||||||
| 1/8 | 3/8 | 1/4 | 3/4 | 1/2 | 1 1/4 | 1 |
|---|---|---|---|---|---|---|
| 1 3/4 | 1 1/2 – 1 1/4 | 1 3/4 | 1 1/2 – 1 1/4 | 1 | 2 | 1 1/2 |
| 36 – 1 | flat | flat | ||||
| 3/8 | 1/2 | 3/8 | 3/4 | 1/2 | 1 1/4 | 1 |
| 3/4 – 1/2 | 36-20 | 36 – 12 | ||||
| 2 1/2 – 1 1/4 | 36-3 | 1 1/2 – 1 1/4 | 2 1/2 – 2 | 1 1/2 – 1 1/4 | 2 1/2 | 2 |
| 1/2 | 1 3/4 | 1/2 | 1 | 3/4 | 1 1/2 | 1 1/4 |
| flat | flat | 12-6 | 8-3 | 5-4 | 3 1/2 – 3 | |
| flat | flat | 18-10 | 10 – 6 | |||
| 36-3 | flat | 36-3 | 5-3 | 2 1/2 – 2 | 3 1/2 – 3 | 2 1/2 |
| 36-14 | 36-10 | 8-6 | 5 – 4 | |||
| Size | B | E | D | C | A |
|---|---|---|---|---|---|
| 1/8 | 25.40 | 7.14 | 6.83 | 15.88 | 19.05 |
| 1/2 | 35.72 | 14.29 | 15.80 | 23.02 | 25.40 |
| 1/4 | 25.40 | 7.14 | 9.25 | 15.88 | 19.05 |
| 1 1/2 | 72.23 | 19.05 | 40.89 | 50.80 | 34.93 |
| 3/4 | 43.66 | 14.29 | 20.93 | 29.37 | 26.99 |
| 3 | 122.24 | 23.81 | 77.93 | 93.66 | 44.45 |
| 1 | 50.80 | 19.84 | 26.64 | 36.51 | 33.34 |
| 4 | 151.61 | 26.99 | 102.26 | 120.65 | 47.63 |
| 2 | 88.11 | 20.64 | 52.50 | 65.09 | 38.10 |
| 6 | 219.08 | 35.72 | 154.05 | 169.86 | 69.85 |
| 5 | 185.74 | 34.13 | 128.19 | 141.29 | 66.68 |
Supplier of Branch Connection Fittings with NPT and BSP Threads in Mumbai
Thread Types Of Branch Outlet Fittings
- NPT Threads
- BSP Threads
- BSPT Threads
- MPT Threads
- FPT Threads
Check Weldolet Weight in Pressure Class 3000 and 6000 PSI
| Size | Weight in KG |
|---|---|
| DN15 | 0.08 |
| DN8 | 0.04 |
| DN20 | 0.11 |
| DN10 | 0.07 |
| DN32 | 0.36 |
| DN25 | 0.23 |
| DN50 | 0.79 |
| DN40 | 0.45 |
| DN80 | 1.81 |
| DN65 | 1.13 |
| DN100 | 2.86 |
| DN90 | 2.5 |
Branch Fittings Pressure Rating
| Description | Classes | ||
|---|---|---|---|
| 9000 | 3000 | 6000 | |
| Size Wall Thick | XXS | SCH 80 / XS | SCH 160 |
| Weldolet, Elbolet, Threadolet | 1/2 to 2 | 1/2 to 4 | 1/2 to 2 |
| 1/2 to 2 | 1/2 to 4 | 1/2 to 2 | |
| 1/2 to 2 | 1/2 to 4 | 1/2 to 2 | |
View Pipe Outlet Fittings Wall Thickness and Advantages of Branch Joint Pipe Fittings
| Thickness | 1 | 3/4 | 1 1/2 | 1 1/4 | 2 | 1 3/4 | 2 3/4 | 2 1/4 | 3 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Branch Pipe Size | A | C | A | C | A | C | A | C | A | C | A | C | A | C | A | C | A | C |
| 24 | 7 5/8 | 23 | 6 1/2 | 23 | 8 23/32 | 21.564 | 8 | 21.564 | 9 13/16 | 21.568 | 8 31/32 | 21.564 | 12 9/16 | 21.564 | 10 1/2 | 21.568 | 10 21/32 | 21.564 |
| 3 1/2 | 3 1/4 | 3.359 | 3 1/8 | 3.359 | 3 3/4 | 3.359 | 3 7/16 | 3 359 | 4 5/8 | 3.359 | 4 3/16 | 3.359 | 6 | 3.359 | 5 1/16 | 3.359 | 6 5/16 | 3.359 |
| 5 | 3 3/4 | 4.812 | 3 3/4 | 4.812 | 4 1/4 | 4.812 | 4 | 4.812 | 5 1/4 | 4.812 | 4 3/4 | 4.812 | 6 5/8 | 4.812 | 5 3/4 | 4.812 | 7 3/16 | 4.812 |
| 8 | 4 5/8 | 7.625 | 4 3/16 | 7.625 | 5 5/32 | 7.625 | 4 7/8 | 7.625 | 6 11/32 | 7.625 | 5 3/4 | 7.625 | 8 3/32 | 7.625 | 6 15/16 | 7.625 | 8 11/16 | 7.625 |
| 3 | 3 7/32 | 2.900 | 2 7/8 | 2.906 | 3 5/8 | 2.900 | 3 3/8 | 2.906 | 4 9/16 | 2.900 | 4 1/8 | 2.900 | 5 7/8 | 2.900 | 5 | 2.900 | 6 1/16 | 2.900 |
| 12 | 5 3/32 | 11.750 | 4 3/8 | 11.750 | 5 11/16 | 11.375 | 5 3/8 | 11.375 | 6 15/16 | 11.375 | 6 5/16 | 11.375 | 8 13/16 | 11.375 | 7 9/16 | 11.375 | 9 7/16 | 11.375 |
| 6 | 4 11/32 | 5.761 | 4 1/8 | 5.750 | 4 11/16 | 5.760 | 4 1/2 | 5.760 | 5 3/4 | 5.760 | 5 1/4 | 5.760 | 7 1/4 | 5.760 | 6 1/4 | 5.760 | 7 13/16 | 5.760 |
| 16 | 5 7/8 | 15 | 4 11/16 | 15 | 6 7/16 | 14.310 | 6 | 14.312 | 7 1/4 | 14.310 | 6 5/8 | 14.310 | 9 1/8 | 14.310 | 7 7/8 | 14.310 | 9 3/4 | 14.310 |
| 10 | 4 27/32 | 9.750 | 4 1/4 | 9.750 | 5 5/16 | 9.562 | 5 | 9.562 | 6 9/16 | 9.562 | 5 15/16 | 9.562 | 8 7/16 | 9.562 | 7 3/16 | 9.562 | 9 1/16 | 9.562 |
| 20 | 6 3/4 | 19 | 5 5/8 | 19 | 7 9/16 | 17.938 | 7 | 17.937 | 8 3/32 | 17.938 | 7 25/32 | 17.938 | 9 29/32 | 17.938 | 8 21/32 | 17.938 | 10 15/32 | 17.938 |
| 4 | 3 3/8 | 3.826 | 3 5/16 | 3.843 | 3 7/8 | 3.826 | 3 1/2 | 3.828 | 4 3/4 | 3.826 | 4 3/4 | 3.826 | 6 1/8 | 3.826 | 5 3/16 | 3.826 | 6 9/16 | 3.826 |
| 18 | 6 1/2 | 17 | 5 1/8 | 17 | 6 1/2 | 16.126 | 6 1/2 | 16.125 | 7 7/16 | 16.126 | 6 13/16 | 16.126 | 9 13/32 | 16.126 | 8 7/32 | 16.126 | 10 1/32 | 16.126 |
| 14 | 5 1/4 | 13 | 4 1/2 | 13 | 5 13/16 | 12.500 | 5 1/2 | 12.500 | 6 15/16 | 12.500 | 6 5/16 | 12.500 | 8 13/16 | 12.500 | 7 9/16 | 12.500 | 9 7/16 | 12.500 |
Advantages of Branch Joint Pipe Fittings
- Enhanced Strength
- Versatile Design
- Compact Installation
- Cost Efficiency
- Leak Resistance
- Standard Compliance
